Zenit Window
Featured Architectural Hinged & Patio Door Systems
Engineered for high-wind resistance, superior thermal envelope efficiency, and modern aesthetic elegance across North American, Australian, and European commercial and residential projects.
Global Industry Trends in Architectural Aluminium Hinged Doors
Strategic insights into fenestration engineering, energy performance regulations, and material science innovations shaping international construction standards.
Thermal Envelope Decarbonization
Global building codes (such as IECC in North America and EU EPBD directives) demand lower U-factors ($U \le 0.24 \text{ BTU/h}\cdot\text{ft}^2\cdot^\circ\text{F}$). Structural polyamide thermal breaks (PA66-GF25) combined with triple-pane Low-E argon-filled glazing have transformed hinged door systems from thermal bridges into high-performance structural insulators.
Minimalist Sightlines & Structural Integrity
Architects increasingly demand ultra-slim frame profiles with maximum glass surface area without compromising structural load capacity. Utilizing high-tensile 6063-T6 aluminum alloys allows frame sightlines to drop below 50mm while retaining design wind pressure capacity exceeding 4500 Pa (ASTM E330 testing standard).
Extreme Weather Resilience
Coastal and hurricane-prone regions require fenestration products rated under Florida Product Approval and AS2047 cyclonic standards. Laminated impact glass integrated into heavy-duty aluminum hinged frames delivers multi-directional defense against windborne debris and water penetration up to 700 Pa.
| Performance Standard / Specification | Standard Commercial Grade | Zenit Architectural OEM Grade (OUNA) | Engineering Advantage |
|---|---|---|---|
| Aluminium Alloy Profile | Recycled Standard 6063-T5 | Primary Virgin 6063-T6 Alloy | Higher yield strength ($\ge 245 \text{ MPa}$ vs $170 \text{ MPa}$) preventing frame deflection |
| Thermal Barrier Technology | PVC / Low-density Nylon Strips | PA66-GF25 (25% Glass-Fiber Reinforced) | Matches thermal expansion of aluminum; structural shear strength > 90 N/mm |
| Weather Sealing System | Standard PVC Gaskets | Continuous Triple EPDM Vulcanized Rubber | Zero dynamic degradation over 25+ years; Air Permeability Class 4 (EN 12207) |
| Surface Treatment Compliance | Standard Powder Coating (< 40$\mu m$) | AAMA 2605 PVDF / Qualicoat Class 2 | 30-year resistance to salt spray corrosion (ASTM B117), UV fading, and chalking |
| Hardware & Locking Mechanism | Single-Point Zinc Alloy Lock | German Siegenia / HOPPE Multi-Point Security | Anti-burglary RC3 rating (EN 1627); cycle tested for >100,000 operations |
Technical Insight: Chengdu Zenit's proprietary thermal break extrusion process incorporates continuous multi-cavity polyamides, lowering overall door system U-factors down to 1.1 W/m²K. This performance profile directly qualifies developments for LEED Gold/Platinum certification and Zero Net Energy (ZNE) status.
Global Enterprise Procurement & Supply Risk Mitigation
How architectural contractors, real estate developers, and building material importers optimize Total Cost of Ownership (TCO) through strategic Chinese direct-factory partnerships.
Mitigating Risk in Large-Scale B2B Sourcing
International procurement managers faced with multi-million dollar residential or commercial fenestration packages prioritize three core vectors: Engineering Compliance Verification, Delivery Timeline Predictability, and Dimensional Precision Control.
Navigating varying regional building codes (e.g., North American NFRC certification, Australian AS2047, and European CE/ISO standards) requires an OEM partner capable of flexible profile engineering. Chengdu Zenit operates an active R&D team of 42 engineers dedicated to converting regional architectural drawings into shop-ready shop-drawing packages and custom extrusion dies.
Total Cost of Ownership (TCO) Economics
Sourcing directly from a specialized factory facility like Zenit reduces middle-layer distribution markups by up to 35-45%. Furthermore, factory-fitted sub-frame assembly options dramatically reduce job-site installation labor costs in high-wage markets across Western Europe, Australia, and North America.
With an annual export turnover of $26 Million across international trade routes, our logistics engine coordinates seamless DDP, CIF, and FOB shipments, utilizing custom heavy-duty plywood crate packaging reinforced with shock-absorbing foam layers to prevent transit damages.
China Factory 4.0: Zenit Manufacturing Facility & QA Operations
Founded in 2015, Chengdu Zenit Window & Door Co., Ltd. operates a 25,000-square-meter state-of-the-art facility backed by 11 years of domain expertise, 600+ supply chain partners, and 35 specialized QA inspectors.
Quality Assurance Protocol: Every aluminum hinged door profile undergoes continuous digital air permeability testing, high-pressure water tightness checks (up to 700 Pa), and corner joint hydraulic fracture strength evaluation. Over the past year alone, Zenit's 42 R&D engineers successfully released 50 new architectural window & door systems to meet evolving global building codes.
Localized Application Scenarios & Architectural Blueprints
Tailored structural fenestration solutions across diverse commercial, luxury residential, and institutional environments.
Luxury Coastal Villas & Estates
Utilizing heavy-duty thermal break aluminum hinged entry doors fitted with multi-point stainless steel locks (SUS316) and hurricane-impact laminated glass. Engineered specifically to withstand severe salt-spray environments and extreme cyclonic wind speeds.
Modern Commercial Office & Hotel Interiors

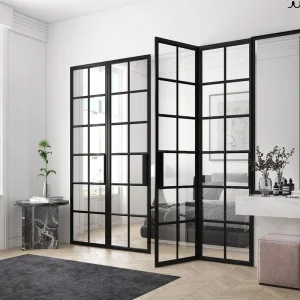

Ultra-slim frame Crittall-style aluminum French doors designed for interior partitions. Provides high sound insulation (STC rating up to 45 dB), acoustic privacy for boardroom suites, and high aesthetic transparency.
High-Traffic Institutional Entryways
Reinforced double-hinged commercial entry doors built with heavy-duty continuous hinges and integrated automatic push/pull hardware. Ideal for modern educational campuses, medical complexes, and luxury retail storefronts.
Technical & Procurement FAQ (Frequently Asked Questions)
Comprehensive engineering clarity for structural specifiers, procurement leaders, and fenestration importers.
Complete Fenestration Product Catalog & Custom Systems

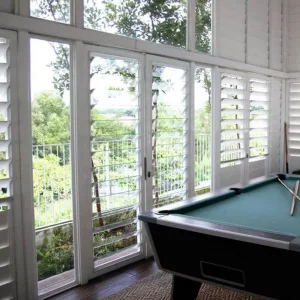

Explore our extended series of hurricane-rated bifold doors, smart skylights, acoustic entry doors, and automated sun-shade louvres.
